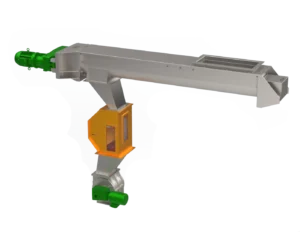

Solid Flow Meter
The solid flow meter has been specifically engineered for accurate, maintenance-free measurement of free-flowing bulk materials. Its design leverages Newton’s Second Law of mechanics to precisely record weight, making it a reliable choice for industrial applications.
One of the standout features of the solid flow meter is its innovative design, which includes no moving parts. This ensures that the solid flow meter requires minimal maintenance while providing exceptional accuracy across a wide range of products. Unlike impact scales, which are significantly influenced by changes in bulk density and grain size, the solid flow meter system measures mass flow using centripetal force. This unique approach minimizes the impact of variations in bulk materials, delivering highly consistent and dependable results.
Inside the solid flow meter, the material flows over a specially designed curved slide, generating a centripetal force that is directly proportional to the flow rate. Thanks to the advanced force transmission to the load cell, the measurement remains highly accurate, regardless of product density, grain size, or friction. Additionally, the solid flow meter system can be pre-calibrated at the factory for optimal performance.
Solid Flow Meters - Benefits
A Solid Flow Meter provides accurate and reliable measurement of free-flowing bulk solids in continuous processes. Its robust design helps optimize material monitoring, process control, and production efficiency with minimal operational requirements.
High Measurement Accuracy −
Provides precise mass flow and quantity measurement with excellent repeatability for reliable process monitoring.
Reliable Bulk Material Measurement +
Low Maintenance Operation +
Improved Process Control +
Flexible Application Range +
Easy System Integration +
Solid Flow Meter - Features
A Solid Flow Meter provides accurate and reliable measurement of free-flowing bulk solids in continuous processes. Its robust design helps optimize material monitoring, process control, and production efficiency with minimal operational requirements.
- Inline Mass Flow MeasurementContinuously measures flow rate and total throughput.
- Friction-Free MeasurementCurved chute technology ensures accurate, low-friction measurement.
- No Moving PartsWear-free design for reliable, low-maintenance operation.
- Wide Capacity RangeSuitable for low- to high-capacity applications.
- Advanced Control InterfacesSupports analog and industrial communication systems.
- Durable Industrial ConstructionWear-resistant design for demanding bulk material applications.
Technical data solid flow meter:
Grain size range:
0 – 30 mm
Product density:
40 – 3500 kg/m³
Sensor accuracy class:
C3 – 3,000 parts
Sensor power supply:
5 – 15 VDC (via electronics)
Sensor protection class:
IP68
System accuracy:
+/- 0.5%
Reproducibility:
+/- 0.1%
Solid Flow Meter
Technical Specification
| Model | Measuring range | Height | Depth | Width | Inlet | Weight | |
|---|---|---|---|---|---|---|---|
| SFM 05 | SFM 09 | SFM 10 | SFM 25 | SFM 50 | SFM 80 | TMAX 150 | TMAX 300 |
| 1000 l/h | 5000 l/h | 10 m3/h | 25 m3/h | 50 m3/h | 80 m3/h | 150 m3/h | 300 m3/h |
| 400 mm | 400 mm | 700 mm | 700 mm | 700 mm | 700 mm | 1050 mm | 1050 mm |
| 348 mm | 348 mm | 525 mm | 525 mm | 525 mm | 525 mm | 744 mm | 744 mm |
| 250 mm | 350 mm | 310 mm | 470 mm | 760 mm | 1120 mm | 1030 mm | 1390 mm |
| 60x 60 mm | 60x155 mm | 120x120 mm | 120x280 mm | 120x570 mm | 120x930 mm | 756x180 mm | 1116x180 mm |
| 19.5 kg | 26.5 kg | 53 kg | 74 kg | 113 kg | 130 kg | 230 kg | 300 kg |

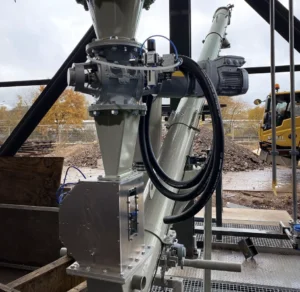

Solid flow meter

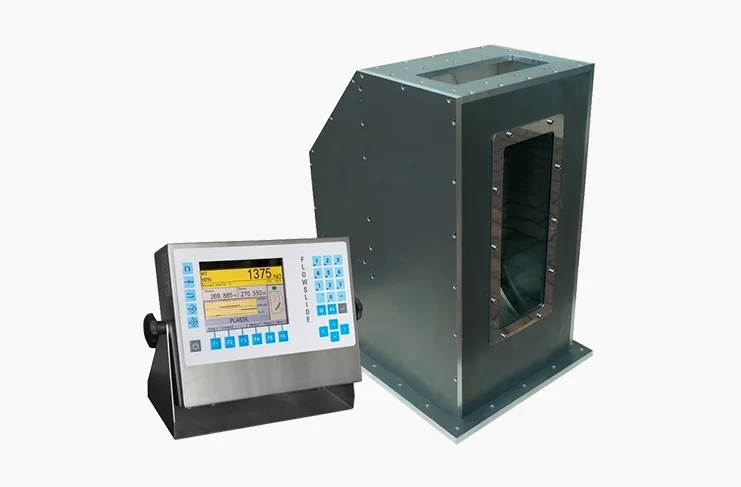

The actual throughput (kg/h or t/h) and the accumulated absolute quantity (kg or t) can be read from the graphic display. The typical system error is +/- 0.5 % (optimum value 0.3 %) from the measurement area. The measuring range of the different solid flow meter sizes starts at 30 kg/h and ends at 300 t/h.
The Solid flow meter system thus offers an extremely accurate, maintenance-free throughput monitoring for all free-flowing solids (product density: 0.02 – 3.5 kg/l). Strongly fluctuating or pulsating transport speeds have minimum effect on the accuracy of measurement. For products which tend to leave deposits, an automatic, electronically powered dust removal system, which uses air jets to remove dust from the measurement slide, is integrated into the device.
By choosing the solid flow meter, you gain a dependable, low-maintenance solution for monitoring free-flowing solids with precision and efficiency.
Frequently Asked Questions
A solid flow meter is an industrial device used to accurately measure the mass flow rate of free-flowing bulk materials such as powders, granules, pellets, and grains.
A solid flow meter measures flow using centripetal force generated as the material moves over a curved measuring slide. The force is transmitted to a load cell for precise mass flow measurement.
Solid flow meters are suitable for powders, pellets, granules, grains, plastic resins, minerals, chemicals, and many other free-flowing bulk solids.
Key advantages include high accuracy, maintenance-free operation, no moving parts, reliable continuous measurement, and minimal influence from bulk density variations.
Unlike impact scales, a solid flow meter is less affected by changes in bulk density, grain size, and material friction, resulting in more stable and accurate measurements.
No. Since the solid flow meter has no moving parts, it requires very little maintenance and offers long-term reliable operation.
Solid flow meters are widely used in the food, chemical, plastics, minerals, cement, agricultural, and recycling industries.
Yes. The solid flow meter systems can be factory pre-calibrated to simplify installation and ensure accurate operation from startup.
A high-quality solid flow meter provides excellent measurement accuracy and repeatability for continuous bulk material flow monitoring.
Yes. A solid flow meter is designed to measure a wide range of free-flowing bulk materials with minimal sensitivity to density or particle size changes.
