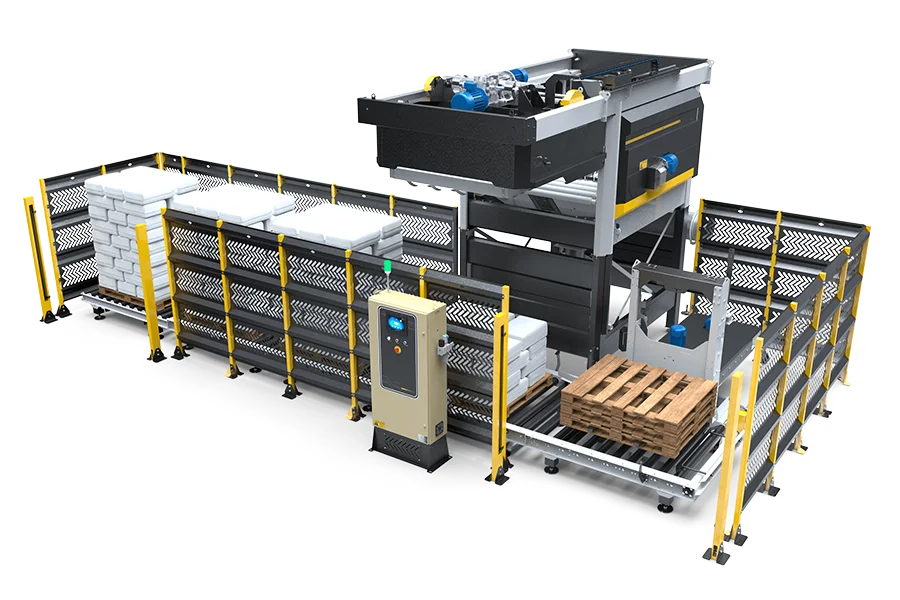

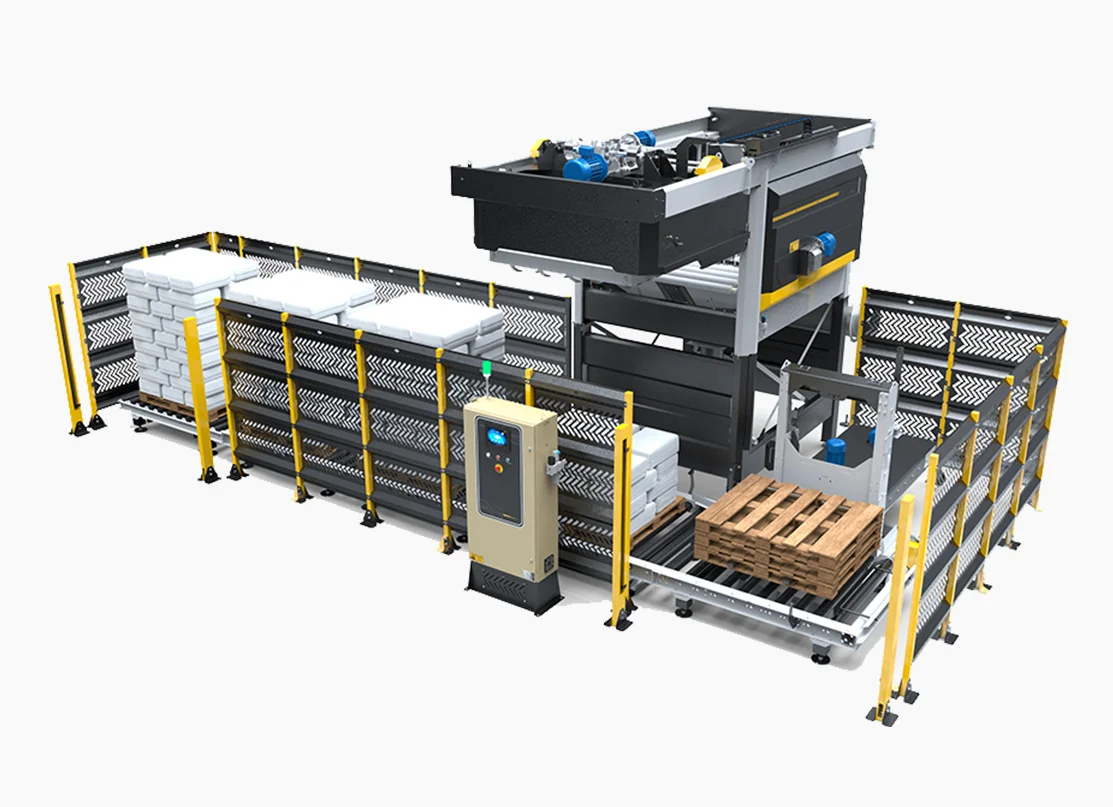

Automatic Bag Emptying Machine
Our advanced automatic bag emptying machine uses cutting-edge automation technology to efficiently discharge materials from bags or sacks stacked on pallets. Automatic bag emptying machine is capable of handling full pallets with 25 kg bags, the machine uses a movable trolley to securely grab and thoroughly discharge each bag’s contents, achieving an impressive 99.9% effectiveness rate.
Our automatic bag emptying machine is controlled via a PLC and operated through a user-friendly 7-inch touchscreen, the machine features a first class moto reducer gear, optical and inductive sensors, a security barrier, and an emergency stop for enhanced safety. The trolley employs a system of 8 hook shafts to grab the bags, while a robust cutting mechanism with stainless steel discs ensures precise bag opening. The entire system operates through advanced pneumatic automation, meeting ISO 9001 quality standards.
Features of the Automatic Bag Emptying Machine
Pallet lifter on bearing guides with mobile basement, driven by transmission and gear motor, non-maintenance toothed belts controlled by an inverter. Safety sensors along the entrance portal.
The pneumatic-mechanical gripping system, with patented claws, takes a layer of bags (sacks) at a time.
Cutting unit with diamond knife edge rotating blades made of special steel
A vibrating grid controlled by a motor-vibrator is used to shake cut bags.
Hopper equipped with a maximum material level sensor to prevent bag splitting at full capacity.
Empty bags are expelled automatically by a dedicated mechanical bag ejector device, which pushes the empty bags directly on the machine's back side through a funnel.
PLC control system with touch screen graphic panel that allows management of the entire system, constantly monitoring the operating status, alarms, diagnostics, viewing dedicated pages of historical production such as number of emptied bags, by date, by material type, etc.
Options of the Automatic Bag Emptying Machine
Empty bag compactor.
Automatic pallet feeding with empty pallet stacker.
Regenerative inverter unit for energy recovery during braking.
Rotary dosing valve and compressor unit for silos pressure loading.
System with diverter valves for automatic silo selection to be loaded.
Technical Data - Automatic Bag Emptying Machine
Dimensions:
Width 2250 mm x Height 3150 mm x Length 6000 mm
Discharge Capacity:
Up to 12 tons per hour
Compatible Bag Types:
Supports plastic, jute, and knitted polypropylene bags/sacks
Materials Processed:
Suitable for pellets, grains, powders, and more
Fully automatic bag emptying machine designed to accelerate material discharge without requiring specialized operators, this fully automatic bag emptying machine boasts innovative construction using standardized materials. In a single, uninterrupted process, fully automatic bag emptying machine can unload an entire pallet of 55 bags in just 7 minutes, seamlessly transferring the emptied pallet with a forklift. This process minimizes human intervention, eliminates raw material loss, and offers a faster, more efficient solution for bulk material handling in industrial settings.
Semi-automatic bag emptying machine
Depalletizer with Automatic bag emptying machine:
Pallet closed room, with an opening gate fitted with safety closing devices and side protections.
Vertical moving plate fitted with pneumatic-mechanical gripping hooks, to take a layer of bags at a time.
Trolley on suitable guides where to lock the plate with hooks, once it is lifted up, to horizontally slide over knives and hopper.
Cutting unit with rotating blades made of special steel, with diamond knife edge, driven by electric motors with the gearbox.
Granules collecting painted steel hopper, with the grid.
Cut-bags shaking system with special vibrating grid operated by motor-vibrator.
Automatic expulsion system of empty bags by mechanical bag ejector, to the rear side through a chute.
Control system by PLC
