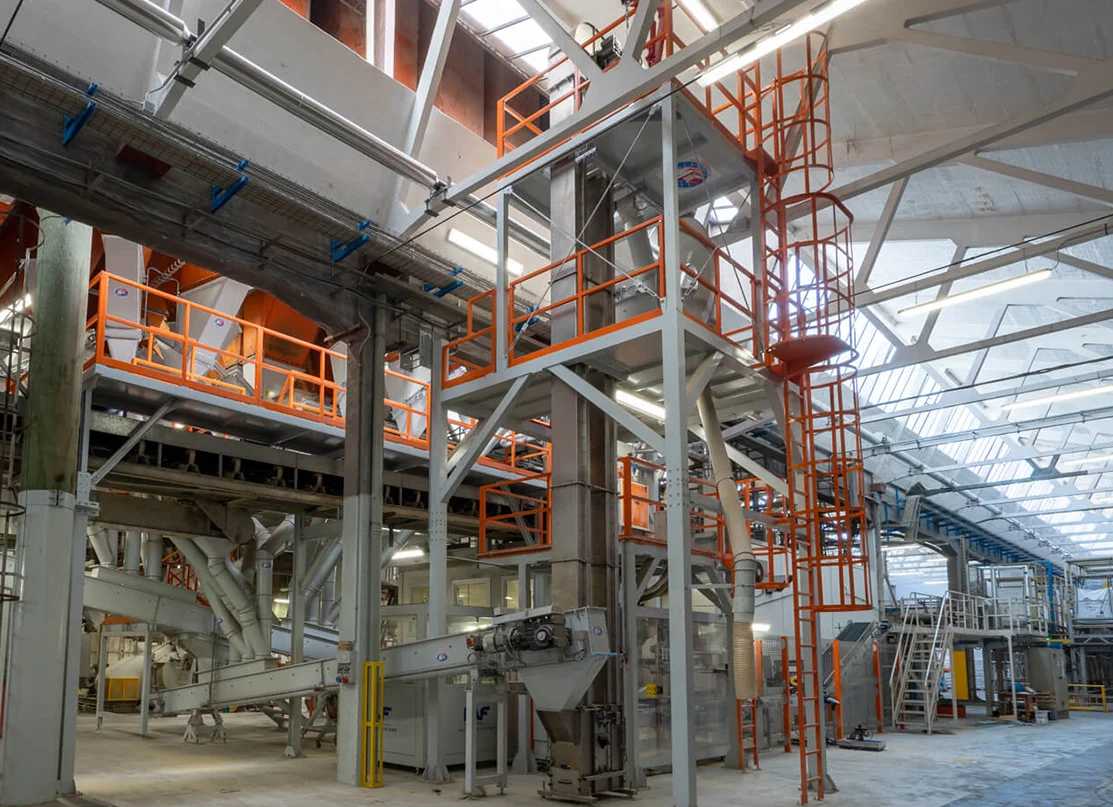

Bucket Elevator
When it comes to high performance vertical transportation, bucket elevators are the most often used method.
Transporting loads up to a maximum height of 75 meters. Bucket elevators are capable of delivering 750 m3/h of flow.
Depending on the graininess and temperature of the product being transported, pulling media such as belts or chains are used to lift the product. The uniformity of the material is determined by adjusting the conveyor bucket on an individual basis.
The design and material of the bucket, as well as the conveying speed, all work together to provide effective filling and emptying. Even sticky and wet materials may be transported securely with bucket elevators. All continuous bucket conveyors are also available with an ATEX certificate for dust explosion zones 20 to 22. All parts that come into contact with the product can also be supplied in food-safe quality.
Bucket Elevator - Benefits
A Bucket Elevator provides a reliable and efficient solution for the vertical conveying of powders, granules, and other bulk materials. Its compact design enables high-capacity material handling while minimizing product loss, maintenance, and floor space requirements.
High Vertical Conveying Capacity −
Efficiently transports bulk materials to significant heights while maintaining continuous and reliable operation.
Space-Saving Design +
Gentle Material Handling +
Low Maintenance Operation +
Energy-Efficient Performance +
Wide Range of Applications +
Bucket Elevator - Features
A Bucket Elevator provides a reliable and efficient solution for the vertical conveying of powders, granules, and other bulk materials. Its compact design enables high-capacity material handling while minimizing product loss, maintenance, and floor space requirements.
- Modular Construction Modular design for easy installation, expansion, and maintenance.
- Multiple Bucket Options Steel, stainless steel, or plastic buckets in various sizes.
- Wide Capacity Range Models available for low- to high-capacity conveying.
- Flexible Inlet & Outlet Configurable loading and discharge points.
- Safety & Monitoring Optional speed sensors, anti-jam, backstop, and level monitoring.
- Material & Finish Options Carbon steel, painted steel, stainless steel, hygienic, and ATEX versions.
Bucket Elevator - Technical Data
Conveyor performances
up to 750 m³/h
Centre distances
up to 75 m
Bucket width
125 mm to 1250 mm
Bucket Elevator
The bucket elevator is a mechanical device used to vertically transport bulk materials, such as grains, powders, pellets, and other bulk solids. It is a versatile and efficient piece of equipment commonly found in industries that require vertical conveying of materials.
The primary function of the bucket elevator is to transport materials vertically. It consists of a series of buckets attached to a conveyor belt or chain, which moves the materials upward or downward depending on the design and configuration. This enables efficient and controlled transfer of bulk materials between different levels within a facility.
Bucket elevators come in various designs and configurations to suit specific material handling requirements. They can be tailored to accommodate different capacities, heights, and flow rates. The size and shape of the buckets, as well as the speed and spacing of the conveyor, can be customized to optimize the lifting and conveying process.
Bucket elevators are engineered to handle large quantities of materials efficiently. With their robust construction and reliable operation, they can move bulk materials vertically over significant heights while maintaining a high throughput. This helps to streamline production processes and minimize manual handling, improving overall operational efficiency.
The bucket elevator is widely used in the agriculture and food processing industries. It efficiently handles commodities like grains, seeds, rice, cereals, and other agricultural products. In food processing facilities, it aids in the vertical conveying of ingredients, such as flour, sugar, spices, and other bulk solids, ensuring smooth production and packaging processes.
Bucket elevators find applications in various industrial sectors beyond agriculture and food processing. They are commonly used in industries such as mining, construction, chemicals, pharmaceuticals, and recycling. They facilitate the vertical transport of materials like ores, aggregates, chemicals, powders, and pellets, contributing to efficient material handling and production operations.
Bucket elevators are designed with safety features to prevent material spillage, blockages, and other potential hazards. They can be equipped with monitoring systems to detect and address operational issues promptly. Regular maintenance and inspections help ensure smooth operation, extend equipment lifespan, and minimize downtime.
Investing in a reliable and well-designed bucket elevator can significantly enhance material handling efficiency, reduce manual labor, and improve overall productivity. If you are considering a bucket elevator for your facility, our team would be happy to assist you in finding the right solution that meets your specific requirements.
Frequently Asked Questions
A Bucket Elevator is a vertical bulk material handling system designed to lift powders, granules, pellets, and other dry materials to elevated discharge points. It uses a series of buckets mounted on a belt, chain, or pendulum system to transport material efficiently in a compact footprint.
A Bucket Elevator System works by filling buckets at the lower loading point, transporting the material vertically inside an enclosed casing, and discharging it at the required elevation. The empty buckets then return to the loading section for continuous operation.
A Pendulum Bucket Elevator is ideal when gentle product handling and flexible material discharge are required. The individually suspended buckets maintain a horizontal position during transport, reducing product damage and allowing discharge at multiple locations along the conveying route.
Yes. Bucket Elevators can be designed for challenging materials using:
• Wear-resistant buckets and chains
• Heavy-duty construction
• Dust extraction connections
• High-temperature materials of construction
They are commonly used in chemical, mineral, fertilizer, cement, and energy industries.
Selecting the correct Bucket Elevator depends on:
• Material characteristics
• Required capacity (kg/h or t/h)
• Lifting height
• Bucket type and size
• Discharge method
• Material temperature
• Abrasiveness and moisture
• Required automation and safety features
A customized bucket elevator design ensures reliable vertical conveying and long service life.
