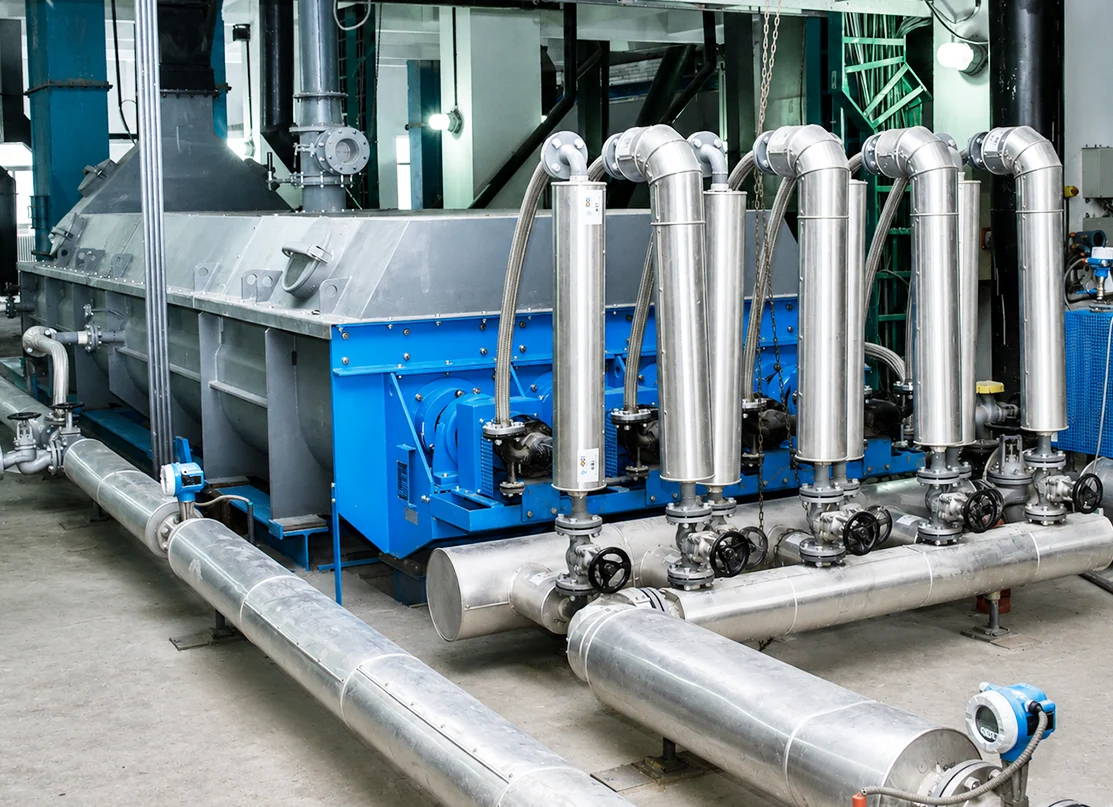

Petroleum Coke Preheater
Our preheaters are used to heat up petroleum coke. Petroleum coke is a residue formed as a by-product of petroleum refining and is made of almost pure carbon. Our Petroleum coke Preheaters are responsible for the heating process, which involves heating the petcoke from a minimum of 0°C to around 200°C. The heated petroleum coke is then mixed with hot pitch in a kneader. The paste is then shaped into blocks. We provided Petroleum coke Preheaters distinguish themselves from other items accessible on the global market due to their state-of-the-art construction. Our design provides significant benefits in terms of maintenance, longevity, efficiency, and the amount of space needed. By applying the hollow flight principle our Petroleum coke preheaters offer maximum performance within the smallest possible space.
Petroleum Coke Preheater - Benefits
High Thermal Efficiency −
The advanced heat transfer design ensures rapid and uniform heating while reducing overall energy consumption.
Improved Anode Quality +
Reduced Operating Costs +
Maximum Performance in Minimal Space +
Long Equipment Service Life +
Easy Maintenance +
Petroleum Coke Preheater - Features
- Hollow Flight Heat TransferHollow-flight screws provide fast and uniform heating.
- Modular InsulationRemovable insulation minimizes heat loss and simplifies maintenance.
- Carbon Bearing DesignCompensates for thermal expansion and reduces maintenance.
- High-Capacity OperationHandles up to 60 t/h and product temperatures up to 220°C.
- Heavy-Duty ConstructionRobust frame with integrated piping and instrumentation.
- Custom Engineered DesignConfigured to match specific process and plant requirements.
Petroleum Coke Preheater
In anode production, the petroleum coke preheater utilizing the hollow flight principle is a specialized equipment that plays a crucial role in the preheating of petroleum coke. This innovative design enhances the efficiency and effectiveness of the preheating process, ensuring optimal carbonization and preparation of the coke for anode manufacturing.
The petroleum coke preheater with the hollow flight principle features a screw conveyor with hollow flights. These hollow flights allow for the circulation of hot gases or combustion air within the screw, creating a highly efficient heat transfer mechanism. As the petroleum coke is fed into the preheater through an inlet, it comes into contact with the heat transfer oils (or steam) circulating within the hollow flights.
The hollow flights enable a significant increase in the heat transfer surface area, maximizing the contact between the hot oils (or steam) and the petroleum coke. This results in enhanced heat transfer efficiency, promoting rapid and uniform preheating of the coke.
The utilization of the hollow flight principle in the petroleum coke preheater offers several advantages in anode production. Firstly, it ensures thorough and consistent heating of the petroleum coke, enabling optimal carbonization and chemical reactions during anode manufacturing. This leads to improved anode quality and performance.
Furthermore, the hollow flight design enhances energy efficiency in the preheating process. The efficient heat transfer mechanism allows for reduced energy consumption, as less energy is required to achieve the desired temperature for the coke. This contributes to cost savings and sustainability in anode production.
The petroleum coke preheater with the hollow flight principle can be customized based on the specific requirements of the anode production facility. Factors such as the capacity, dimensions, and configuration of the screw conveyor can be tailored to suit the production needs.
Overall, the petroleum coke preheater employing the hollow flight principle is a vital component in anode production. Its innovative design optimizes the preheating process, ensuring efficient utilization of petroleum coke as a carbon source. By enhancing heat transfer efficiency and energy savings, it contributes to improved anode quality and the overall efficiency of the anode manufacturing process.
The modular insulation is on one side maintenance friendly due to rapidly removable panels and insures on the other side by minimizing radiation losses best possible exploitation of the supplied heat.
The challenge mastered by extensive development is compensation of the thermal expansion of the worm shaft, which is completely absorbed by the especially developed our carbon bearings, with the smallest possible maintenance work and costs. The tongue-shaped shaft passages enable individual worm shafts to be replaced easily without dismantling the end wall or the other shafts. This minimizes downtime significantly.
Frequently Asked Questions
A Petroleum Coke Preheater is a thermal processing system that heats petroleum coke before it is mixed with hot pitch for anode production. Preheating improves heat transfer, process efficiency, and the quality of the final anode.
Preheating raises the temperature of petroleum coke to approximately 200°C before mixing with pitch. This ensures better mixing, improved paste consistency, and more uniform anode production.
Petroleum Coke Preheaters are primarily used in the aluminum industry for carbon anode production used in the Hall-Héroult aluminum smelting process.
A Petroleum Coke Preheater improves energy efficiency, provides uniform heating, reduces heat loss, increases production capacity, and helps produce high-quality anodes with consistent properties.
A screw-type Petroleum Coke Preheater uses hollow-flight screw conveyors through which a thermal fluid circulates. Heat is transferred directly through the screw flights, providing efficient and uniform heating while conveying the material.
The Hollow Flight principle circulates heating medium through the hollow screw flights, creating a much larger heat transfer surface than conventional screw conveyors. This improves heating efficiency and reduces equipment size.
Petroleum Coke Preheaters are available in a wide range of capacities, typically from 5 to 60 t/h, with customized solutions available for larger production requirements.
Can a Petroleum Coke Preheater be customized?
Typical design data includes required throughput, inlet and outlet temperatures, petroleum coke properties, available heating medium, operating conditions, and plant layout to ensure optimum system performance.
