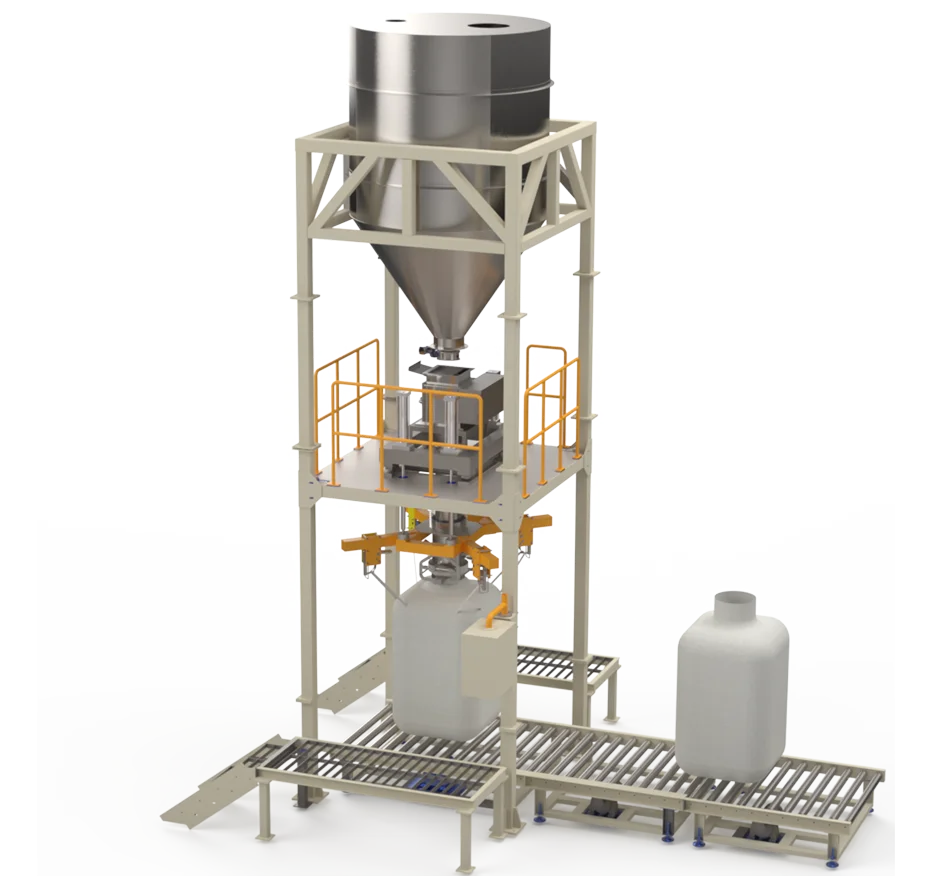

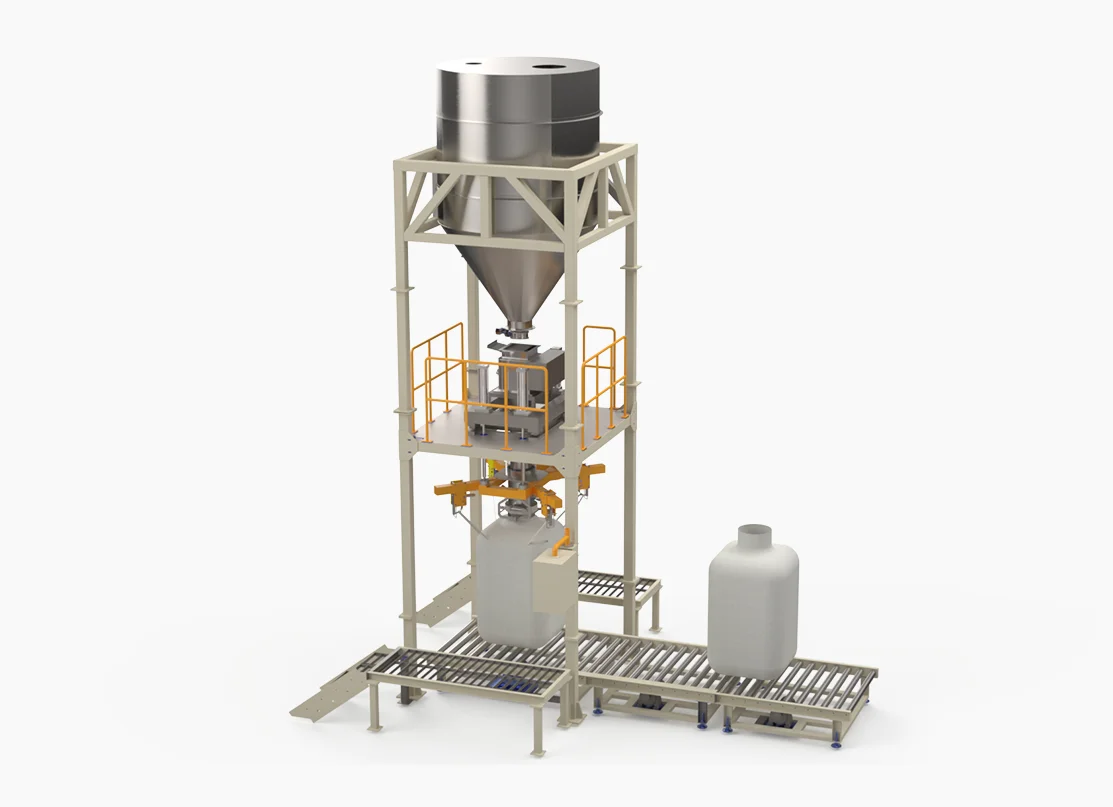

Bulk Bag Filling System
Bulk bag is commonly known as FIBC and are one of the most preferred mode for transporting bulk materials.
Powders and bulk materials may be loaded and stored with ease using our various configurations of bulk bag filling system, which are available in numerous different sizes. Whatever the requirements of your business, from manual to automated loading and storage requirements, we can provide the appropriate bulk bag filling system for any application we encounter.
TiERMAX offers the best solutions for the bulk bag filling system based on your application, desired filling capacities and your required degree of automation.
We offer bulk bag filling systems with all your required options: gross weighing or net weighing, width adjustment, inflatable seal, tension cylinder, automatic hooks, rotating head, bulk bag pre-forming, vibrating table, roller conveyor, pallet unstacker, automatic closing device with clip system, access platform and mobile bulk bag filling system.
Features of our Bulk Bag Filling System
Volumetric and gravimetric filling
Gravity feeder with hopper
Vibrating table for densification
Containment inflatable seal
Big bag rotating head
Automatic release
Motorized roller conveyors for empty pallet input and full pallet output
Height adjustable structure
Automatic pneumatic pallet feeder
Dust explosion design (ATEX)
Mobile Bulk Bag Filling Station
Bulk bag filling system for 1 or 4 handles
Advantage of our Bulk Bag Filling System
Operator friendly and safe working
Effective product compacting during the filling process
Meet diverse needs of the all industries
Conveyor and buffer storage to achieve high rates
Automatic dosing and weighing
Automatic loading and unloading of bulk bags
Automatic removal of bulk bag loops
Net weighing / Gross weighing
Dustproof docking system
Net weighing dosing hopper
Compliant with current CE regulations

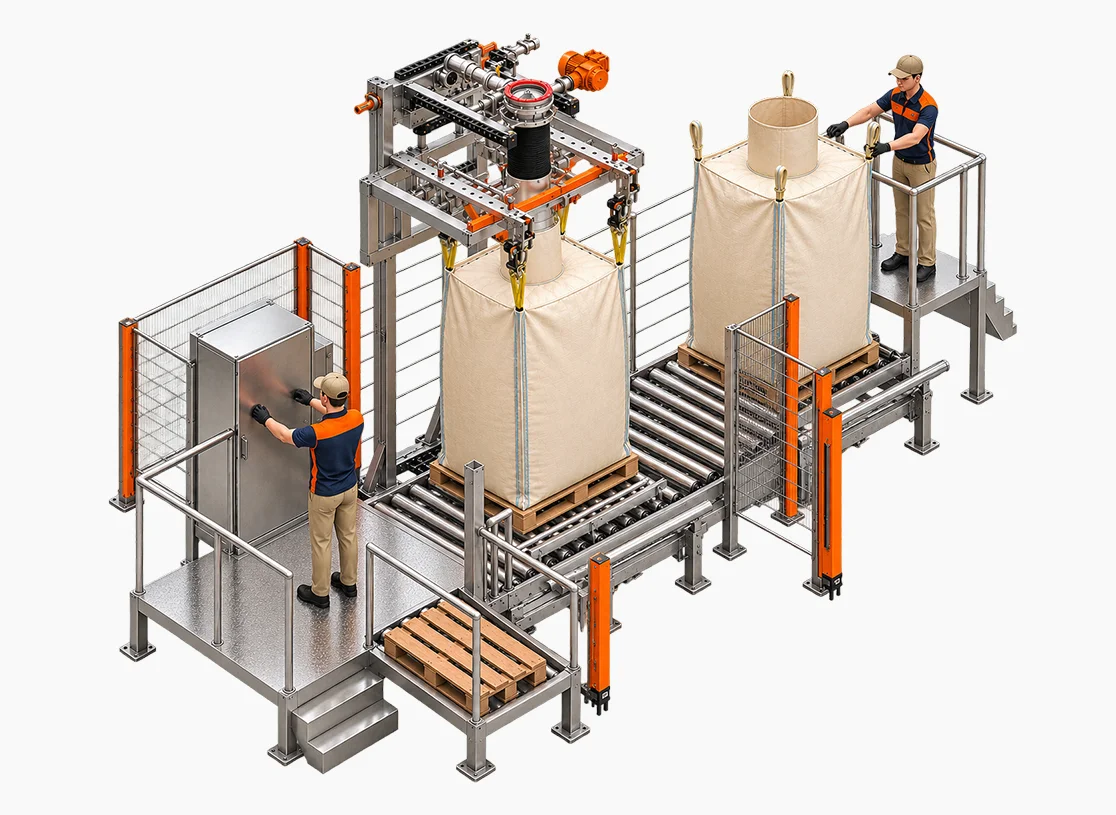

Available from semi-automatic to fully automatic system
Technical Specifications of Bulk Bag Filling System
Flow rate :
up to 60 bulk bags/hr
Weight Capacity :
500 kg to 2,500 kg / bulk bag
Manufacturing materials :
mild steel, SS 304L, SS 316L
Weighing precision :
± 500 grams
Maximum dimensions of bulk bags :
1,200 x 1,200 x 2,400 mm
More About Bulk Bag Filling System
The different bulk material characteristics require often specially adapted solutions to guarantee a clean and calibration-conforming filling.
Bulk bag filling systems are designed based on the safe and low-dust filling of bulk bags and ergonomic principles which will be accepted by the operator.
Our bulk bag filling system with intelligent detailed solutions and proven designs, represent systems engineering that is welcome in all industries.

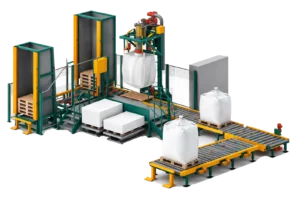

Our automatic bulk bag filling system, is designed with all necessary options for conditioning with minimal human intervention. This model is a complete solution which includes automatic dosing and feeding, bulk bag bagging and conveying system. This model designed based on bulk bag automatic net weighing and for continuous operation with very high flow rate.

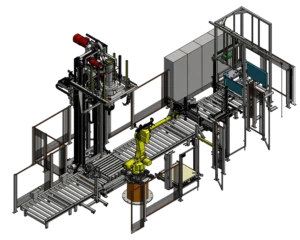

Fully Automatic Bulk Bag Filling System
of 4-loop Bulk Bags. The Big Bag loops are caught by a special gripper system and are handed over into the filling station by means of a robot control system. Moreover, both the dust-tight filling connection as well as the sealing of the bulk bag filling spout is automated. Operator intervention is no longer required for a purely filling process.
Complete filling and packaging lines can be offered for bulk bags. The plants are individually configured and planned based on customer desire according to product requirements and local circumstances. Besides the complete system, control and programming, all assemblies and start-up processes and operator training are conducted worldwide by our specialist personnel.
Overview of Fully Automatic Bulk Bag Filling System steps
1- Catching the bulk bag carrying loops
2- Robot handover into the filling station
3- Take over of the carrying loops
4- Immersion of filling head and docking spout
5- Extraction of the filling spout
6- Automatic filling spout closure
