Traditional vibratory sieve
Tiermax offers a complete range of traditional vibratory sieves designed to deliver high-quality, reliable, and cost-effective screening and separation solutions for both dry powders and liquid applications. Our systems are engineered for precise particle separation from 20 mm down to 20 microns, serving a wide range of industries including food processing, pharmaceuticals, chemicals, coatings, recycling, metal powders, and wastewater treatment.
Built for performance, durability, and easy maintenance, our traditional vibratory sieve range is available in multiple sizes and deck configurations to suit different throughput capacities and process requirements.
Main Accessories - Traditional Vibratory Sieve
Cover with suction and inspection hole
Mesh cleaning system
FDA compliant
ATEX certified
Stainless steel base
AISI 316 stainless steel manufacturing
Quick-release band clamps
Pneumatic lifting system
Benefits of our Traditional Vibratory Sieves
Accurate particle separation from 20 mm to 20 μm
Suitable for powder and liquid screening
Compact, hygienic, and customizable designs
Low maintenance with easy-clean mesh systems
Multi-deck options for multiple cut points
Stainless steel construction for long service life
Traditional Vibratory Sieves for Dry Powders
Our powder screening systems are ideal for safety screening, grading, classification, and separation of fine and coarse materials.

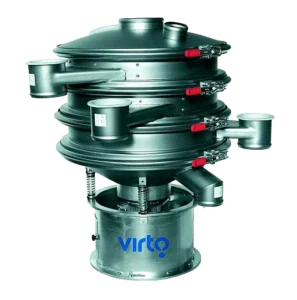

VPB Series – Versatile Powder Screening
The VPB Series Traditional Vibratory Sieve is a compact and highly versatile solution for dry powder separation. Featuring a stainless steel base, central motor drive, and quick-release clamps, it offers easy cleaning, mobility, and adjustable height. Available in four sizes, it is widely used with sack tip stations and big bag filling/discharge units.

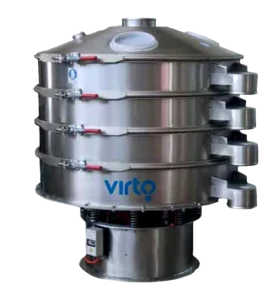

VPM Series – High Capacity Screening
The VPM Series Traditional Vibratory Sieve is the industry standard for high-throughput fine powder screening. Available in 900 mm, 1200 mm, 1500 mm, and 2000 mm diameters, with single, double, or triple deck options, it enables multiple particle cut sizes for efficient separation.

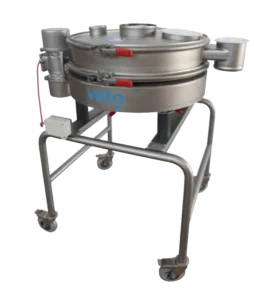

VP1 Series – Compact High-Performance Screener
Designed for both wet and dry applications, the VP1 Traditional Vibratory Sieve delivers excellent performance in a compact footprint. With tool-free quick-release clamps, easy cleaning, and customizable design, it is ideal for high-capacity safety screening.

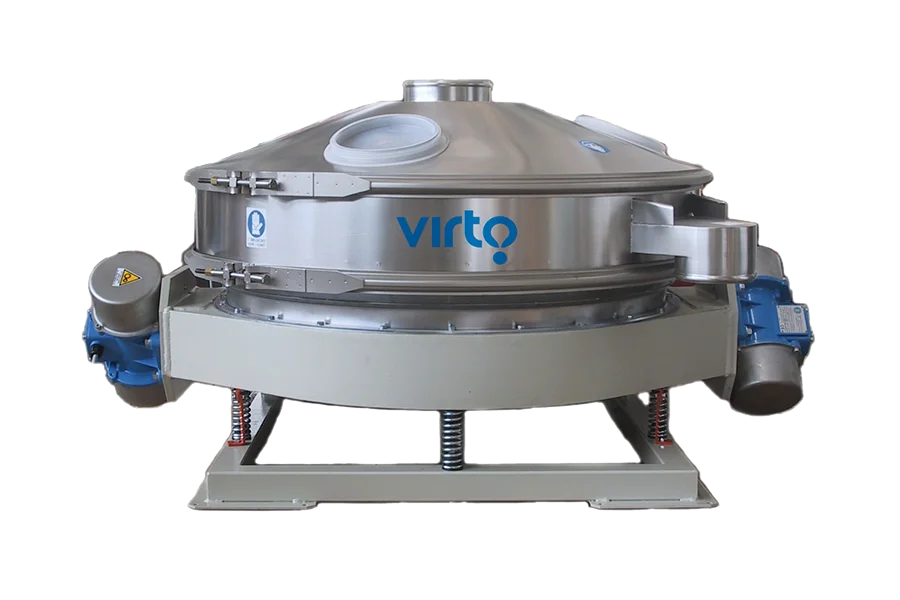

VP2 Series – Low Headroom Safety Screener
The VP2 Series Traditional Vibratory Sieve is a compact circular screener developed for critical powder safety screening points. Its low-profile design makes it perfect for installation in existing process lines with limited headroom.

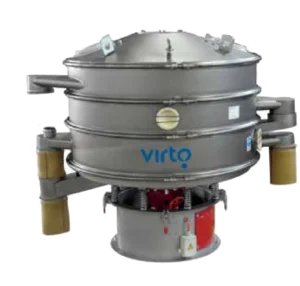

Traditional Vibratory Sieves for Liquids & Slurries
Tiermax also supplies advanced circular screeners for liquid-solid separation, slurry processing, dewatering, and wastewater filtration.
VLB Series – Cost-Effective Liquid Filtration
The VLB Traditional Vibratory Sieve is ideal for slurry separation, dirty water filtration, and dewatering applications. Its self-cleaning mesh design and adjustable screening time help maximize productivity while reducing downtime.
VLM Series – High Capacity Liquid Separation
The VLM Series is designed for liquid-solid separation, waste oil filtration, slurry processing, and high-temperature materials up to 200°C. With a side-round outlet, it provides greater capacity compared to standard models.
VLH Series – Ultra High Capacity Slurry Screening
The VLH 1200 and VLH 1500 are the highest-capacity models in the range, offering up to three times the throughput of the VLM series. Fully sealed and built in AISI 304 or 316 stainless steel, they are ideal for demanding industrial liquid and slurry applications.
Pharmaceutical Vibratory Sieves
For pharmaceutical and high-purity applications, Tiermax provides premium stainless steel screening systems built to the highest standards.
VPF Series – Pharmaceutical Grade Sieve
The VPF Traditional Vibratory Sieve is specifically designed for pharmaceutical powders and fine materials requiring hygienic processing. Manufactured in AISI 316 stainless steel with mirror-polished internal surfaces, silicone seals, and IP65 electrical protection, it ensures compliance with pharmaceutical industry standards.
VPF2 Series – Low Profile Pharma Screener
The VPF2 Series offers a low-profile design for pharmaceutical powder safety screening, featuring twin side motors, center inlet and outlet, and a fully stainless steel hygienic construction.
