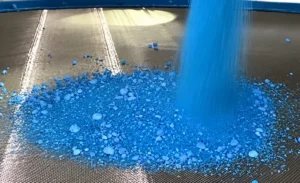

Ultrasonic vs. Conventional Screening for Fine Metal Powders

When screening fine metal powders, ultrasonic technology is often considered the default solution for difficult separations. Ultrasound can certainly improve screening performance in specific applications, particularly where particles repeatedly block fine mesh openings. However, it is not necessarily the most efficient or cost-effective solution for every powder.

A properly engineered vibration system can already achieve very high separation performance. The key is understanding the powder, its behavior on the screen, and the actual cause of any screening difficulty before selecting additional technology.

How Effective Is Conventional Vibrating Screening?

Modern vibrating sieves can achieve excellent results without ultrasonic assistance.

Based on experience gained across approximately 300 industrial screening applications, conventional vibration technology can achieve around 90–95% separation accuracy, depending on the physical characteristics of the material and the available operating adjustments.

For many metal powder applications, this level of performance can be sufficient when the mesh size, vibration pattern, feed rate, and screening area are correctly selected.

For more demanding fine-powder applications, multifrequency screening technology can extend the achievable performance further. Depending on the material characteristics, separation can reach particle sizes as fine as 10 microns, with reported separation precision in the range of 95–99%.

This means that very fine screening does not automatically require ultrasound.

Why Process Design Matters

Successful fine-powder screening depends on more than the screening technology itself.

One of the first considerations should be the particle size distribution (PSD). Understanding how much material is above, below, and close to the required cut point helps determine the appropriate mesh and screening configuration.

Particle shape is equally important. Spherical metal powders may behave very differently from irregular, elongated, or agglomerated particles, even when their nominal particle sizes are similar.

The feeding method also has a major influence. A controlled and uniform feed distributes material more evenly across the mesh, while an uncontrolled surge of powder can overload part of the screening surface and reduce separation efficiency.

For this reason, the sieve and its upstream feeding system should be considered as one integrated process.

Mesh Blinding: Is Ultrasound Really Necessary?

Fine particles can gradually become trapped in mesh openings, reducing the available screening area and lowering capacity. This phenomenon, commonly known as mesh blinding, is one of the main reasons ultrasonic systems are considered.

But mesh blinding does not always require ultrasound.

For cohesive or difficult powders, a suitable mesh-cleaning system combined with optimized vibration may be sufficient to keep the screening surface open and maintain stable throughput.

Before adding ultrasound, it is important to determine whether the problem is caused by powder agglomeration, particle shape, unsuitable vibration, excessive feed rate, or particles physically becoming lodged inside the mesh apertures.

When Ultrasonic Screening Adds Value

Ultrasonic technology becomes particularly valuable when particles have an irregular geometry or a strong tendency to become trapped in fine mesh openings, and conventional vibration or mechanical cleaning cannot maintain the required performance.

High-frequency excitation of the mesh can help prevent particles from remaining lodged in the apertures and maintain more of the available screening area.

In these situations, ultrasound can improve consistency and throughput. However, adding an ultrasonic system simply to compensate for inadequate vibration performance or an unsuitable sieve design may add cost and complexity without addressing the real process issue.

Ultrasound should therefore be considered an additional screening tool—not a shortcut to good screening design.

Fine Metal Powder and Additive Manufacturing Applications

The choice of screening technology is particularly important for metal powder recovery and additive manufacturing.

Recovered powder may contain agglomerates, oversized particles, partially fused particles, or other unwanted material that must be separated before the powder can be returned to the process.

Depending on the powder and required cut size, conventional vibration, multifrequency screening, mesh-cleaning technology, or ultrasonic assistance may be appropriate.

For reactive metal powders, screening can also be incorporated into a controlled inert-atmosphere system with enclosed powder transfer and oxygen monitoring. Integrated systems can combine controlled feeding, fine-powder screening, powder collection, and automated process control.

Selecting the Right Screening Technology

There is no single screening technology that is ideal for every fine metal powder.

The appropriate solution depends on the PSD, particle morphology, required cut size, throughput, powder flow characteristics, feeding conditions, mesh behavior, and process safety requirements.

Material testing can be particularly valuable for difficult applications. Testing different vibration settings, meshes, cleaning methods, and screening technologies using the actual powder can determine whether conventional screening already achieves the required performance or whether ultrasonic assistance provides a measurable advantage.

At TIERMAX, we evaluate the complete powder-handling process to develop an appropriate screening solution. Systems can integrate controlled powder feeding, conventional or multifrequency screening, ultrasonic assistance where required, vacuum or pneumatic conveying, inert atmosphere operation, oxygen monitoring, powder collection, and automated controls.

The objective is not to use the most complex technology available, but to select the technology that delivers the required separation performance, reliability, safety, and operating efficiency.
