Metal Powder Recovery for Additive Manufacturing

Overview

Metal additive manufacturing requires precise control of powder quality throughout the production cycle. After printing, unused metal powder can often be recovered and returned to the process, provided that oversized particles, agglomerates and other unwanted material are effectively removed.

TIERMAX provides screening solutions designed to support the recovery and conditioning of metal powders used in additive manufacturing. By integrating fine-powder screening into the recovery process, valuable material can be separated and prepared for potential reuse while maintaining the required particle-size range.

Challenge

Powder recovered from a 3D printer cannot simply be returned directly to production.

During handling and printing, the powder may contain agglomerates, oversized particles or other material outside the required particle-size specification. At the same time, additive-manufacturing powders can be extremely fine, making conventional screening difficult.

The challenge is to achieve reliable separation without unnecessarily rejecting valuable powder while maintaining consistent screening performance.

A Dedicated Metal Powder Recovery Solution

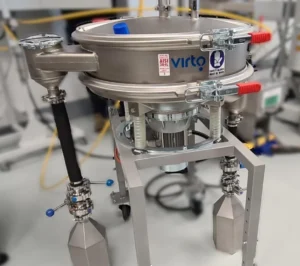

The system uses precision vibrating sieving technology designed specifically for metal powder recovery.

Depending on the powder characteristics and required particle size, the solution can incorporate:

• 3D 500 vibrating sieve for metal powder recovery
• Fine separation down to 40 μm
• Circular multifrequency vibrating sieve for applications requiring finer or more demanding separation
• Removal of oversized particles and agglomerates
• Stainless-steel construction
• Compact design for integration with additive manufacturing equipment
• Quick-connect interfaces for controlled powder transfer
• Optional closed and fully inerted configurations

The system can be adapted according to the powder type, particle size specification, printing technology, and production requirements.

Controlled Powder Recovery & Reuse

Recovered powder passes through the sieving system, where particles outside the required specification are separated from reusable material.

The screened powder can then be transferred back to storage, dosing, or the additive manufacturing process. Quick-connect interfaces help simplify powder transfer while reducing unnecessary exposure and material handling.

For applications involving reactive or very fine metal powders, the system can also be configured with inert gas management and enclosed powder handling.

Suitable for a Range of Metal Powders

The recovery system can be applied to metal powders including:

• Titanium
• Stainless steel
• Nickel alloys
• Inconel
• Copper
• Tungsten

These powders are commonly used in additive manufacturing applications across industries such as aerospace, automotive and motorsport, medical technology, and advanced manufacturing.

Results

A properly configured metal powder recovery system enables unused powder from the 3D printing process to be efficiently screened and returned to production.

The approach provides:

• Consistent recovered powder quality
• Reliable removal of oversized particles and contaminants
• Improved control of particle size
• Reduced loss of high-value metal powders
• Controlled powder handling
• Integration with existing additive manufacturing systems
• Optional inerted operation for demanding applications

For similar applications, TIERMAX can integrate MLT Cuccolini sieving technology into metal powder handling and recovery systems based on the specific material, required particle size, and additive manufacturing process.
